Hair Cell Transduction, Tuning, and Synaptic Transmission in the Mammalian Cochlea

Robert Fettiplace

10.1002/cphy.c160049

Source: Volume 7, Issue 4, October 2017

Published online: September 2017

Full Article on Wiley Online Library



ABSTRACT

Sound pressure fluctuations striking the ear are conveyed to the cochlea, where they vibrate the basilar membrane on which sit hair cells, the mechanoreceptors of the inner ear. Recordings of hair cell electrical responses have shown that they transduce sound via submicrometer deflections of their hair bundles, which are arrays of interconnected stereocilia containing the mechanoelectrical transducer (MET) channels. MET channels are activated by tension in extracellular tip links bridging adjacent stereocilia, and they can respond within microseconds to nanometer displacements of the bundle, facilitated by multiple processes of Ca2+‐dependent adaptation. Studies of mouse mutants have produced much detail about the molecular organization of the stereocilia, the tip links and their attachment sites, and the MET channels localized to the lower end of each tip link. The mammalian cochlea contains two categories of hair cells. Inner hair cells relay acoustic information via multiple ribbon synapses that transmit rapidly without rundown. Outer hair cells are important for amplifying sound‐evoked vibrations. The amplification mechanism primarily involves contractions of the outer hair cells, which are driven by changes in membrane potential and mediated by prestin, a motor protein in the outer hair cell lateral membrane. Different sound frequencies are separated along the cochlea, with each hair cell being tuned to a narrow frequency range; amplification sharpens the frequency resolution and augments sensitivity 100‐fold around the cell's characteristic frequency. Genetic mutations and environmental factors such as acoustic overstimulation cause hearing loss through irreversible damage to the hair cells or degeneration of inner hair cell synapses. © 2017 American Physiological Society. Compr Physiol 7:1197‐1227, 2017.

Comprehensive Physiology offers downloadable PowerPoint presentations of figures for non-profit, educational use, provided the content is not modified and full credit is given to the author and publication.

Download a PowerPoint presentation of all images


Figure 1. Figure 1. Schematic of the sound transmission pathway from the eardrum to the cochlea. Sound stimuli impinge on the tympanum (t), or eardrum, at the end of the ear canal and the vibrations (denoted by red arrows) are transmitted through the three bones of the middle ear: malleus (m), incus (i), and stapes (s). The footplate of the stapes behaves like a piston in the oval window and initiates pressure waves in the cochlear fluids so setting in vibration the basilar membrane. The pressure is relieved at the round window (rw). The cochlea, here depicted as straight, is in situ coiled like a snail's shell and embedded in the petrous temporal bone. It is subdivided into three compartments containing perilymph or endolymph fluid, the two outer compartment being connected by the helicotrema. The total length of the cochlea is 35 mm (humans), 26 mm (cat), 18 mm (guinea pig), and 6 mm (mice).
Figure 2. Figure 2. Cross section though the cochlear duct showing the cellular structure. The scala media is delimited by Reissner's membrane, the spiral ligament, and the basilar membrane, which is surmounted by the organ of Corti. The width of the basilar membrane ranges from approximately 100 to 500 μm in humans. The scala media is filled with a K+‐based endolymph, here colored pink. The organ of Corti contains the sensory hair cells embedded in assorted supporting cells of distinct shape. The hair‐cell stereociliary bundles are covered in an acellular tectorial sheet and the cells are innervated by the cochlear branch of the VIIIth cranial nerve. Inner hair cells are contacted by afferents (orange) whereas outer hair cells are innervated mainly by efferent fibers (yellow). The stria vascularis is an epithelial strip on the lateral wall that is specialized for secreting endolymph.
Figure 3. Figure 3. Schematic of the stria vascularis. The stria comprises two cellular layers separated by an intrastrial space. Marginal cells face the endolymph and intermediate/basal cells, interconnected by gap junctions (blue pairs of lines), are exposed to fibrocytes of the strial ligament and perilymph; adjacent cells in each layer are linked by tight junctions (purple). (Note that the orientation is reversed with regard to that shown in Fig. 2.) Flow of K+ ions is facilitated by the inwardly rectifying KCNJ10 K+ channel on intermediate cells and the KCNQ1/KCNE1 K+ channel on the endolymphatic aspect of the marginal cells. Ionic balance is maintained by Na/K ATPase, Na‐2Cl‐K and Cl transporters. The voltages given (+90, +100, and +10 mV) refer to the static potentials of the extracellular spaces with respect to the scala tympani. The endolymphatic potential of +90 mV is attributable to a Nernst K+ equilibrium potential of ∼100 mV across the highly K+ selective apical membrane of intermediate cells. The intrastrial space has low K+ due to uptake of the ion by the Na‐2Cl‐K cotransporter and the Na/K ATPase and K+ is then secreted into endolymph across the K+‐selective membrane of marginal cell.
Figure 4. Figure 4. Stereociliary bundles and the transduction apparatus. Scanning electron micrographs of stereociliary bundles of (A) an outer hair cell and (B) an inner hair cell, showing the staircase in heights of the rows. (C) Transmission electron micrograph of an outer hair cell showing a tip link connecting two stereocilia; the insertion sites of the tip link (TL) are heavily electron dense suggesting dense protein densities. (D) Schematic of the molecular structure of the tip link apparatus deduced from various mutations. USH‐1 and USH‐2 denote different Usher type 1 and type 2 mutations. The association between the N‐termini of protocadherin‐15 and cadherin‐23 is Ca2+ dependent. Two MET channels (red) are situated at the lower end of the tip link and are present as complexes with TMIE, LHFPL5, TMC1, and possibly other proteins. Modified, with permission, from (80).
Figure 5. Figure 5. Mechanoelectrical transducer (MET) currents in outer hair cells. (A) Schematic of the stimulating and recording techniques. OHCs are patch clamped and the stereociliary bundle is deflected either by a glass probe attached to a piezoelectric device or by a fluid jet. Displacement of the bundle are calibrated by projection of image onto a photodiode array (55,243). (B) MET currents for family of step displacements, X, of a hair bundle, displaying rapid rise to peak and then adaptive decline to a steady level. (C) Plot of peak MET current against bundle displacement with an operating range of ∼0.25 μm. (D) Expanded scale of MET current onset showing that it develops as quickly as the displacement step (shown above) but then adapts with a time constant, τA, of 100 μs. (E) MET currents in OHCs from the apex and base of the cochlea for sinusoidal modulation of hair bundle position (top). Bundle motion was calibrated by projecting its image on to a pair of photodiodes, the noisy grey trace denoting the photocurrent. (F) MET current increases from apex to base of cochlea; current amplitude was 50% larger in the reduced Ca2+ of the endolymph solution‐bathing bundle. All currents measured at a holding potential of −84 mV. Modified, with permission, from (80,146).
Figure 6. Figure 6. Single MET channels in mouse hair cells. (A) Apical outer hair cell: four representative single channel records for 150 nm hair bundle displacement steps; middle, ensemble average of 10 responses; bottom amplitude histograms giving mean single‐channel current of 6.2 pA. (B) Basal outer hair cell: four representative single channel records for 150 nm hair bundle stimuli; middle, ensemble average of 10 responses; bottom, amplitude histograms giving mean single‐channel current of 12 pA. (C) Single‐channel current and conductance (mean ± 1 SD) as a function of position in the cochlea, expressed as relative distance from the apical end. Total length of cochlea is 6 mm. All measurements made at room temperature and −84 mV holding potential. Modified, with permission, from (23).
Figure 7. Figure 7. Adaptation assayed with two‐pulse experiment. (A) MET currents for two series of brief bundle displacements, the first are control steps and the second are test steps, which are preceded by a long adapting step. Note the current decay during the adapting step. (B) Current‐displacement relationships for first (control) pulse and for second (test) pulse after adapting step. The current I is scaled to its maximum value, Imax. Note the positive shift, ΔX0.5, in the current‐displacement relationship. (C) Schematic of experiment where the amplitude of the adapting step was varied. (D) Plot of shift in current‐displacement relation, ΔX0.5, as a function of the size of the adapting step. The slope is typically 0.5–0.6. All currents measured in outer hair cells at a holding potential of −84 mV. Results, with permission, from reference (18).
Figure 8. Figure 8. Tonotopic variations in membrane properties of rodent outer hair cells. (A) Principal membrane currents determining potential of outer hair cell. MET current, IMT, carried mainly by K+ ions, flows in through MET channels down a potential gradient determined by the positive endolymphatic potential (EP, 90 mV) and the resting potential (VR, ∼ −50 mV); the K+ current exits mainly via GK,n channels in lateral wall, down a K+ concentration gradient into the perilymph. (B) MET conductance, GMT, increases with the characteristic frequency at the location of the hair cell. (C) Voltage‐dependent K+ conductance, GK,n, increases with hair‐cell characteristic frequency. (D) Membrane capacitance decreases with hair‐cell characteristic frequency, signifying a progressive decrease in the size, mainly the length, of the outer hair cell. Combining results in B, C, and D, implies a significant reduction in the membrane time constant determined by C/(GMET + GKn). Results are combined measurements from gerbils (filled circles) and rats (filled squares) and were taken, with permission, from (129). (E) OHC length (and hence membrane area and electrical capacitance) decreases with increase in characteristic frequency in different mammals: (a) chinchilla, human; (b) guinea pig; (c) chinchilla, gerbil; (d) guinea pig, chinchilla; (e) gerbil, rat; (f) chinchilla, mouse, rat; (g) guinea pig, rat, human; (h) rat, bat; (i) mouse; (j) bat. Data, with permission, from [(60); rat, bat, guinea pig, and gerbil], [(25); chinchilla], [(239,235); human], and from author's laboratory (rat, mouse, and gerbil).
Figure 9. Figure 9. Filtering of receptor potentials by inner hair cell. (A) Changes in IHC membrane potential elicited by current pulses of magnitudes given next to each trace in isolated guinea pig inner hair cell. Note the voltage inactivation for larger responses. (B) Schematic of organ of Corti showing the IHC and innervation by multiple afferents. The medial and lateral sides of the IHC are often referred to as “modiolar” and “pillar,” the orientation of which is shown beneath the schematic. (C) Receptor potentials in an inner hair cell of an anesthetized guinea pig for tones of different frequencies, given in Hz alongside the traces. At low frequencies, the response is purely sinusoidal, reflecting the sound stimulus. At frequencies above 1000 Hz, the periodic (AC) component is filtered by the membrane time constant leaving a sustained depolarizing (DC) component. (D) Synchronization index, indicating phase‐locking in auditory nerve discharge, as a function of the frequency of the sound stimulus in auditory nerve fibers of cats (crosses) and guinea pigs (filled and open squares). An index of 1.0 denotes perfect synchronization of the spikes to a specific phase on every cycle of the tone, whereas an index of 0 denotes no relationship between the spike firing and the sound cycle. Records in (A) modified, with permission, from (153) and (C) and (D), with permission, from (222). See also Figure 14 for examples of phase locking.
Figure 10. Figure 10. Tonotopic organization of the turtle auditory papilla. Left, medial view with the hair‐cell papilla on the right‐hand side of the basilar membrane; scale bar = 100 μm. Right, examples of electrical resonance in hair cells at different positions along the epithelium. Resonant frequency, given beside traces, increases from apex to base. Each record is the voltage response to a small depolarizing current step, the timing of which is shown at top; cells had resting potentials in the range −44 to −51 mV. Figure taken, with permission, from (246).
Figure 11. Figure 11. Mechanical and electrical tuning curves in the mammalian cochlea. (A) Solid curves are frequency‐threshold tuning curves for two auditory nerve fibers in the chinchilla cochlea, with characteristic frequencies of 0.4 and 9.5 kHz. Superimposed on each nerve‐fiber tuning curve at similar locations are the basilar membrane vibrations: iso‐displacement response (dotted curves, 1‐nm left and 2.7 nm right) and isovelocity response (dashed curves, 2.5 μm/s left, and 164 μm/s right). The results indicate almost all of the frequency tuning is present in the basilar membrane vibrations, with isovelocity responses giving better fits to the nerve fiber frequency‐threshold curve; from (254). (B) Schematic of auditory nerve fiber tuning curves for the cat cochlea based on results in references (165,125). Similar sets of tuning curves are also available for other mammals including the Mongolian gerbil (215) and the mouse (283).
Figure 12. Figure 12. Outer hair cell contractility mediated by prestin. (A) Schematic of outer hair cell with prestin molecules in lateral wall. Force applied to hair bundle open MET channels, causing depolarization and cell contraction due to change in conformation of prestin. (B) Transmission electron micrograph of rat outer hair cell immunolabeled for prestin shows gold particles in the lateral wall; abbreviations: st, stereociliary bundle; cp cuticular plate; cy, cytoplasm; jc junctional complex. (C) Contractions of outer hair cell evoked by voltage steps from −120 mV to +50 mV; length change measured with dual photodiode; (D) plots of length change in outer hair cell recorded with chloride‐based and sulfate‐based intracellular solutions. With chloride, the prestin was half‐activated at −50 mV, but sulfate shifted the activation relationship ∼150 mV positive. B taken, with permission, from (176); C and D taken, with permission, from (141).
Figure 13. Figure 13. Deformation of organ of Corti during stimulation. (A) Excitatory (rarefaction) sound stimulus causes upward deflection of basilar membrane and organ of Corti. On conventional view, the entire organ moves upward without changing shape and causes abneural displacement of hair bundles; brown background denotes resting position and black outline new stimulated position. (B) Electrical stimulation elicits contraction of outer hair cells and compression of the organ of Corti, with the reticular lamina being pulled down and basilar membrane pulled up. During normal stimulation it is envisage that both processes in A and B will occur sequentially but the exact timing is still uncertain.
Figure 14. Figure 14. Synaptic potentials and action potentials in an auditory afferent. (A) Microelectrode recordings from an auditory nerve terminal in the turtle cochlea showing the spontaneous synaptic potentials and action potentials in the absence of a sound stimulus (top) and the response evoked by a tone at 265 Hz, 54 dB SPL (bottom). (B) Peristimulus histograms showing phase locking of action potentials to a 265 Hz tone (top) and a 520 Hz tone (bottom) from cell in (A); modified, with permission, from reference (53).
Figure 15. Figure 15. The synapse between the inner hair cell and cochlear afferent fiber. (A) Inner hair cell makes synaptic contacts with multiple (10‐20) afferent fibers on its basolateral aspect, each synapse having one presynaptic ribbon (blue) and release site onto one afferent. Fibers synapsing on the pillar side are thought to have low thresholds and high resting spontaneous firing; fibers synapsing on the modiolar side have high threshold and low spontaneous discharge. The ribbons are smaller and the postsynaptic glutamate receptor densities (blue strip) are larger for the low threshold fibers. (B) Enlargement of the (blue) ribbon surrounded by halo of (yellow) synaptic vesicles. The ribbon is composed of ribeye and piccolo proteins and anchored to the membrane of the release site by bassoon. Vesicles are exocytosed by Ca2+ influx through Cav1.3 Ca2+ channels on presynaptic membrane and glutamate neurotransmitter binds to GluA2/3 receptors on the postsynaptic membrane. (C) High power view of synaptic vesicle, glutamate transporter Vglut3, and Ca2+ sensor otoferlin with six #c2 domains. (D) Conventional view of the life cycle of the synaptic vesicle, from docking at the release site, interaction of vesicular and target SNARE proteins and priming for release, fusion and reuptake. Several of these processes are thought to be Ca2+‐sensitive and possibly mediated by otoferlin.

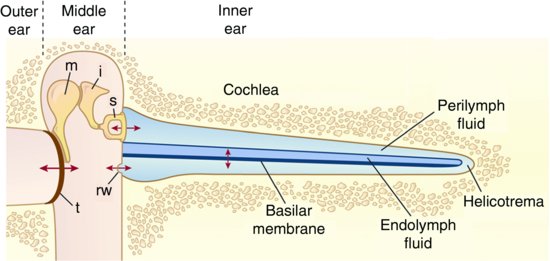

Figure 1. Schematic of the sound transmission pathway from the eardrum to the cochlea. Sound stimuli impinge on the tympanum (t), or eardrum, at the end of the ear canal and the vibrations (denoted by red arrows) are transmitted through the three bones of the middle ear: malleus (m), incus (i), and stapes (s). The footplate of the stapes behaves like a piston in the oval window and initiates pressure waves in the cochlear fluids so setting in vibration the basilar membrane. The pressure is relieved at the round window (rw). The cochlea, here depicted as straight, is in situ coiled like a snail's shell and embedded in the petrous temporal bone. It is subdivided into three compartments containing perilymph or endolymph fluid, the two outer compartment being connected by the helicotrema. The total length of the cochlea is 35 mm (humans), 26 mm (cat), 18 mm (guinea pig), and 6 mm (mice).

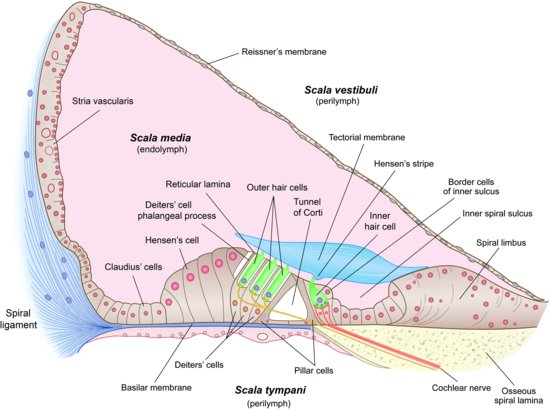

Figure 2. Cross section though the cochlear duct showing the cellular structure. The scala media is delimited by Reissner's membrane, the spiral ligament, and the basilar membrane, which is surmounted by the organ of Corti. The width of the basilar membrane ranges from approximately 100 to 500 μm in humans. The scala media is filled with a K+‐based endolymph, here colored pink. The organ of Corti contains the sensory hair cells embedded in assorted supporting cells of distinct shape. The hair‐cell stereociliary bundles are covered in an acellular tectorial sheet and the cells are innervated by the cochlear branch of the VIIIth cranial nerve. Inner hair cells are contacted by afferents (orange) whereas outer hair cells are innervated mainly by efferent fibers (yellow). The stria vascularis is an epithelial strip on the lateral wall that is specialized for secreting endolymph.

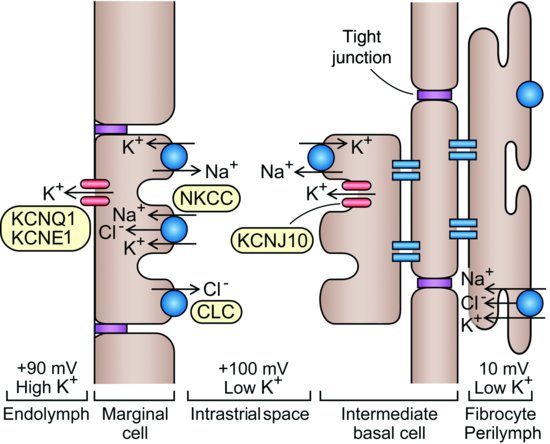

Figure 3. Schematic of the stria vascularis. The stria comprises two cellular layers separated by an intrastrial space. Marginal cells face the endolymph and intermediate/basal cells, interconnected by gap junctions (blue pairs of lines), are exposed to fibrocytes of the strial ligament and perilymph; adjacent cells in each layer are linked by tight junctions (purple). (Note that the orientation is reversed with regard to that shown in Fig. 2.) Flow of K+ ions is facilitated by the inwardly rectifying KCNJ10 K+ channel on intermediate cells and the KCNQ1/KCNE1 K+ channel on the endolymphatic aspect of the marginal cells. Ionic balance is maintained by Na/K ATPase, Na‐2Cl‐K and Cl transporters. The voltages given (+90, +100, and +10 mV) refer to the static potentials of the extracellular spaces with respect to the scala tympani. The endolymphatic potential of +90 mV is attributable to a Nernst K+ equilibrium potential of ∼100 mV across the highly K+ selective apical membrane of intermediate cells. The intrastrial space has low K+ due to uptake of the ion by the Na‐2Cl‐K cotransporter and the Na/K ATPase and K+ is then secreted into endolymph across the K+‐selective membrane of marginal cell.


Figure 4. Stereociliary bundles and the transduction apparatus. Scanning electron micrographs of stereociliary bundles of (A) an outer hair cell and (B) an inner hair cell, showing the staircase in heights of the rows. (C) Transmission electron micrograph of an outer hair cell showing a tip link connecting two stereocilia; the insertion sites of the tip link (TL) are heavily electron dense suggesting dense protein densities. (D) Schematic of the molecular structure of the tip link apparatus deduced from various mutations. USH‐1 and USH‐2 denote different Usher type 1 and type 2 mutations. The association between the N‐termini of protocadherin‐15 and cadherin‐23 is Ca2+ dependent. Two MET channels (red) are situated at the lower end of the tip link and are present as complexes with TMIE, LHFPL5, TMC1, and possibly other proteins. Modified, with permission, from (80).

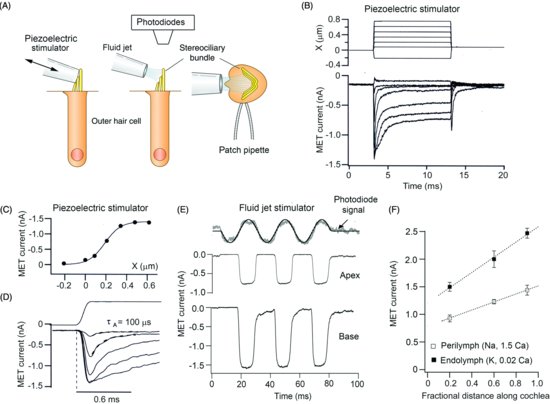

Figure 5. Mechanoelectrical transducer (MET) currents in outer hair cells. (A) Schematic of the stimulating and recording techniques. OHCs are patch clamped and the stereociliary bundle is deflected either by a glass probe attached to a piezoelectric device or by a fluid jet. Displacement of the bundle are calibrated by projection of image onto a photodiode array (55,243). (B) MET currents for family of step displacements, X, of a hair bundle, displaying rapid rise to peak and then adaptive decline to a steady level. (C) Plot of peak MET current against bundle displacement with an operating range of ∼0.25 μm. (D) Expanded scale of MET current onset showing that it develops as quickly as the displacement step (shown above) but then adapts with a time constant, τA, of 100 μs. (E) MET currents in OHCs from the apex and base of the cochlea for sinusoidal modulation of hair bundle position (top). Bundle motion was calibrated by projecting its image on to a pair of photodiodes, the noisy grey trace denoting the photocurrent. (F) MET current increases from apex to base of cochlea; current amplitude was 50% larger in the reduced Ca2+ of the endolymph solution‐bathing bundle. All currents measured at a holding potential of −84 mV. Modified, with permission, from (80,146).

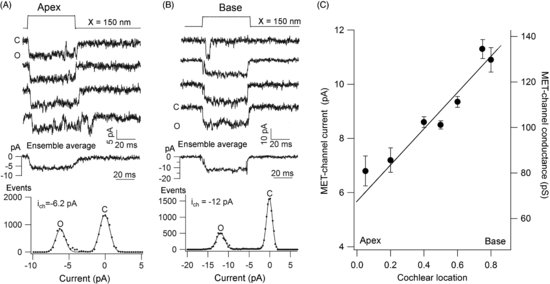

Figure 6. Single MET channels in mouse hair cells. (A) Apical outer hair cell: four representative single channel records for 150 nm hair bundle displacement steps; middle, ensemble average of 10 responses; bottom amplitude histograms giving mean single‐channel current of 6.2 pA. (B) Basal outer hair cell: four representative single channel records for 150 nm hair bundle stimuli; middle, ensemble average of 10 responses; bottom, amplitude histograms giving mean single‐channel current of 12 pA. (C) Single‐channel current and conductance (mean ± 1 SD) as a function of position in the cochlea, expressed as relative distance from the apical end. Total length of cochlea is 6 mm. All measurements made at room temperature and −84 mV holding potential. Modified, with permission, from (23).


Figure 7. Adaptation assayed with two‐pulse experiment. (A) MET currents for two series of brief bundle displacements, the first are control steps and the second are test steps, which are preceded by a long adapting step. Note the current decay during the adapting step. (B) Current‐displacement relationships for first (control) pulse and for second (test) pulse after adapting step. The current I is scaled to its maximum value, Imax. Note the positive shift, ΔX0.5, in the current‐displacement relationship. (C) Schematic of experiment where the amplitude of the adapting step was varied. (D) Plot of shift in current‐displacement relation, ΔX0.5, as a function of the size of the adapting step. The slope is typically 0.5–0.6. All currents measured in outer hair cells at a holding potential of −84 mV. Results, with permission, from reference (18).

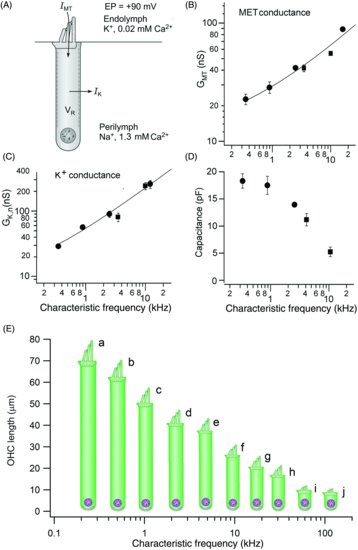

Figure 8. Tonotopic variations in membrane properties of rodent outer hair cells. (A) Principal membrane currents determining potential of outer hair cell. MET current, IMT, carried mainly by K+ ions, flows in through MET channels down a potential gradient determined by the positive endolymphatic potential (EP, 90 mV) and the resting potential (VR, ∼ −50 mV); the K+ current exits mainly via GK,n channels in lateral wall, down a K+ concentration gradient into the perilymph. (B) MET conductance, GMT, increases with the characteristic frequency at the location of the hair cell. (C) Voltage‐dependent K+ conductance, GK,n, increases with hair‐cell characteristic frequency. (D) Membrane capacitance decreases with hair‐cell characteristic frequency, signifying a progressive decrease in the size, mainly the length, of the outer hair cell. Combining results in B, C, and D, implies a significant reduction in the membrane time constant determined by C/(GMET + GKn). Results are combined measurements from gerbils (filled circles) and rats (filled squares) and were taken, with permission, from (129). (E) OHC length (and hence membrane area and electrical capacitance) decreases with increase in characteristic frequency in different mammals: (a) chinchilla, human; (b) guinea pig; (c) chinchilla, gerbil; (d) guinea pig, chinchilla; (e) gerbil, rat; (f) chinchilla, mouse, rat; (g) guinea pig, rat, human; (h) rat, bat; (i) mouse; (j) bat. Data, with permission, from [(60); rat, bat, guinea pig, and gerbil], [(25); chinchilla], [(239,235); human], and from author's laboratory (rat, mouse, and gerbil).

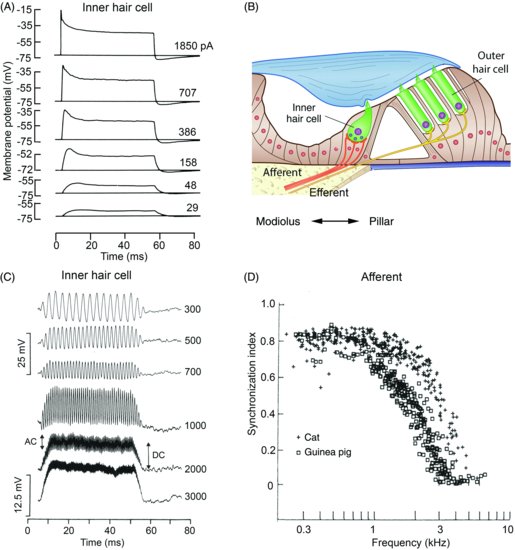

Figure 9. Filtering of receptor potentials by inner hair cell. (A) Changes in IHC membrane potential elicited by current pulses of magnitudes given next to each trace in isolated guinea pig inner hair cell. Note the voltage inactivation for larger responses. (B) Schematic of organ of Corti showing the IHC and innervation by multiple afferents. The medial and lateral sides of the IHC are often referred to as “modiolar” and “pillar,” the orientation of which is shown beneath the schematic. (C) Receptor potentials in an inner hair cell of an anesthetized guinea pig for tones of different frequencies, given in Hz alongside the traces. At low frequencies, the response is purely sinusoidal, reflecting the sound stimulus. At frequencies above 1000 Hz, the periodic (AC) component is filtered by the membrane time constant leaving a sustained depolarizing (DC) component. (D) Synchronization index, indicating phase‐locking in auditory nerve discharge, as a function of the frequency of the sound stimulus in auditory nerve fibers of cats (crosses) and guinea pigs (filled and open squares). An index of 1.0 denotes perfect synchronization of the spikes to a specific phase on every cycle of the tone, whereas an index of 0 denotes no relationship between the spike firing and the sound cycle. Records in (A) modified, with permission, from (153) and (C) and (D), with permission, from (222). See also Figure 14 for examples of phase locking.


Figure 10. Tonotopic organization of the turtle auditory papilla. Left, medial view with the hair‐cell papilla on the right‐hand side of the basilar membrane; scale bar = 100 μm. Right, examples of electrical resonance in hair cells at different positions along the epithelium. Resonant frequency, given beside traces, increases from apex to base. Each record is the voltage response to a small depolarizing current step, the timing of which is shown at top; cells had resting potentials in the range −44 to −51 mV. Figure taken, with permission, from (246).

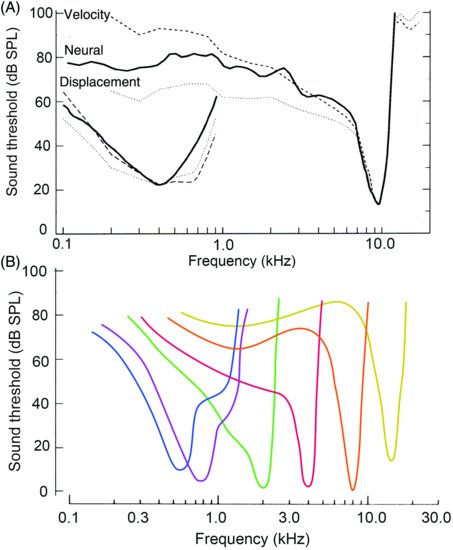

Figure 11. Mechanical and electrical tuning curves in the mammalian cochlea. (A) Solid curves are frequency‐threshold tuning curves for two auditory nerve fibers in the chinchilla cochlea, with characteristic frequencies of 0.4 and 9.5 kHz. Superimposed on each nerve‐fiber tuning curve at similar locations are the basilar membrane vibrations: iso‐displacement response (dotted curves, 1‐nm left and 2.7 nm right) and isovelocity response (dashed curves, 2.5 μm/s left, and 164 μm/s right). The results indicate almost all of the frequency tuning is present in the basilar membrane vibrations, with isovelocity responses giving better fits to the nerve fiber frequency‐threshold curve; from (254). (B) Schematic of auditory nerve fiber tuning curves for the cat cochlea based on results in references (165,125). Similar sets of tuning curves are also available for other mammals including the Mongolian gerbil (215) and the mouse (283).

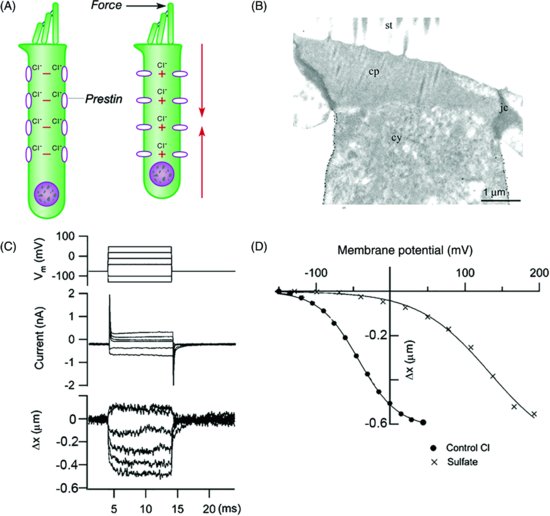

Figure 12. Outer hair cell contractility mediated by prestin. (A) Schematic of outer hair cell with prestin molecules in lateral wall. Force applied to hair bundle open MET channels, causing depolarization and cell contraction due to change in conformation of prestin. (B) Transmission electron micrograph of rat outer hair cell immunolabeled for prestin shows gold particles in the lateral wall; abbreviations: st, stereociliary bundle; cp cuticular plate; cy, cytoplasm; jc junctional complex. (C) Contractions of outer hair cell evoked by voltage steps from −120 mV to +50 mV; length change measured with dual photodiode; (D) plots of length change in outer hair cell recorded with chloride‐based and sulfate‐based intracellular solutions. With chloride, the prestin was half‐activated at −50 mV, but sulfate shifted the activation relationship ∼150 mV positive. B taken, with permission, from (176); C and D taken, with permission, from (141).


Figure 13. Deformation of organ of Corti during stimulation. (A) Excitatory (rarefaction) sound stimulus causes upward deflection of basilar membrane and organ of Corti. On conventional view, the entire organ moves upward without changing shape and causes abneural displacement of hair bundles; brown background denotes resting position and black outline new stimulated position. (B) Electrical stimulation elicits contraction of outer hair cells and compression of the organ of Corti, with the reticular lamina being pulled down and basilar membrane pulled up. During normal stimulation it is envisage that both processes in A and B will occur sequentially but the exact timing is still uncertain.


Figure 14. Synaptic potentials and action potentials in an auditory afferent. (A) Microelectrode recordings from an auditory nerve terminal in the turtle cochlea showing the spontaneous synaptic potentials and action potentials in the absence of a sound stimulus (top) and the response evoked by a tone at 265 Hz, 54 dB SPL (bottom). (B) Peristimulus histograms showing phase locking of action potentials to a 265 Hz tone (top) and a 520 Hz tone (bottom) from cell in (A); modified, with permission, from reference (53).

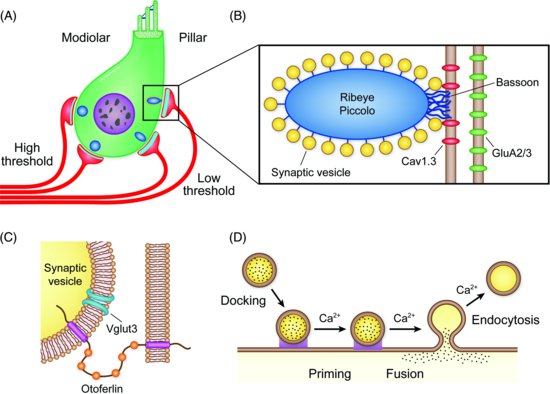

Figure 15. The synapse between the inner hair cell and cochlear afferent fiber. (A) Inner hair cell makes synaptic contacts with multiple (10‐20) afferent fibers on its basolateral aspect, each synapse having one presynaptic ribbon (blue) and release site onto one afferent. Fibers synapsing on the pillar side are thought to have low thresholds and high resting spontaneous firing; fibers synapsing on the modiolar side have high threshold and low spontaneous discharge. The ribbons are smaller and the postsynaptic glutamate receptor densities (blue strip) are larger for the low threshold fibers. (B) Enlargement of the (blue) ribbon surrounded by halo of (yellow) synaptic vesicles. The ribbon is composed of ribeye and piccolo proteins and anchored to the membrane of the release site by bassoon. Vesicles are exocytosed by Ca2+ influx through Cav1.3 Ca2+ channels on presynaptic membrane and glutamate neurotransmitter binds to GluA2/3 receptors on the postsynaptic membrane. (C) High power view of synaptic vesicle, glutamate transporter Vglut3, and Ca2+ sensor otoferlin with six #c2 domains. (D) Conventional view of the life cycle of the synaptic vesicle, from docking at the release site, interaction of vesicular and target SNARE proteins and priming for release, fusion and reuptake. Several of these processes are thought to be Ca2+‐sensitive and possibly mediated by otoferlin.
References
 1.Occupational Noise Exposure Cincinnati, OH: DHHS (NIOSH) Publication No. 98–126, 1998, p. 2‐3.
 2.Ahmed ZM, Goodyear R, Riazuddin S, Lagziel A, Legan PK, Behra M, Burgess SM, Lilley KS, Wilcox ER, Riazuddin S, Griffith AJ, Frolenkov GI, Belyantseva IA, Richardson GP, Friedman TB. The tip‐link antigen, a protein associated with the transduction complex of sensory hair cells, is protocadherin‐15. J Neurosci 26: 7022‐7034, 2006.
 3.Akinpelu OV, Peleva E, Funnell WR, Daniel SJ. Otoacoustic emissions in newborn hearing screening: A systematic review of the effects of different protocols on test outcomes. Int J Pediatr Otorhinolaryngol 78: 711‐717, 2014.
 4.Andrade LR, Salles FT, Grati M, Manor U, Kachar B. Tectorins crosslink type II collagen fibrils and connect the tectorial membrane to the spiral limbus. J Struct Biol 194: 139‐146, 2016.
 5.Art JJ, Fettiplace R. Variation of membrane properties in hair cells isolated from the turtle cochlea. J Physiol 385: 207‐242, 1987.
 6.Ashmore J. Cochlear outer hair cell motility. Physiol Rev 88: 173‐210, 2008.
 7.Ashmore JF. A fast motile response in guinea‐pig outer hair cells: The cellular basis of the cochlear amplifier. J Physiol 388: 323‐347, 1987.
 8.Assad JA, Hacohen N, Corey DP. Voltage dependence of adaptation and active bundle movement in bullfrog saccular hair cells. Proc Natl Acad Sci U S A 86: 2918‐2922, 1989.
 9.Assad JA, Shepherd GM, Corey DP. Tip‐link integrity and mechanical transduction in vertebrate hair cells. Neuron 7: 985‐994, 1991.
 10.Atkinson PJ, Huarcaya Najarro E, Sayyid ZN, Cheng AG. Sensory hair cell development and regeneration: Similarities and differences. Development 142: 1561‐1571, 2015.
 11.Bae C, Sachs F, Gottlieb PA. The mechanosensitive ion channel Piezo1 is inhibited by the peptide GsMTx4. Biochemistry 50: 6295‐6300, 2011.
 12.Barr‐Gillespie PG. Assembly of hair bundles, an amazing problem for cell biology. Mol Biol Cell 26: 2727‐2732, 2015.
 13.Bekesy Gv. Experiments in Hearing. New York: McGraw‐Hill, 1960.
 14.Belyantseva IA, Boger ET, Naz S, Frolenkov GI, Sellers JR, Ahmed ZM, Griffith AJ, Friedman TB. Myosin‐XVa is required for tip localization of whirlin and differential elongation of hair‐cell stereocilia. Nat Cell Biol 7: 148‐156, 2005.
 15.Ben‐Yosef T, Belyantseva IA, Saunders TL, Hughes ED, Kawamoto K, Van Itallie CM, Beyer LA, Halsey K, Gardner DJ, Wilcox ER, Rasmussen J, Anderson JM, Dolan DF, Forge A, Raphael Y, Camper SA, Friedman TB. Claudin 14 knockout mice, a model for autosomal recessive deafness DFNB29, are deaf due to cochlear hair cell degeneration. Hum Mol Genet 12: 2049‐2061, 2003.
 16.Beurg M, Evans MG, Hackney CM, Fettiplace R. A large‐conductance calcium‐selective mechanotransducer channel in mammalian cochlear hair cells. J Neurosci 26: 10992‐11000, 2006.
 17.Beurg M, Fettiplace R, Nam JH, Ricci AJ. Localization of inner hair cell mechanotransducer channels using high‐speed calcium imaging. Nat Neurosci 12: 553‐558, 2009.
 18.Beurg M, Goldring AC, Fettiplace R. The effects of Tmc1 Beethoven mutation on mechanotransducer channel function in cochlear hair cells. J Gen Physiol 146: 233‐243, 2015.
 19.Beurg M, Kim KX, Fettiplace R. Conductance and block of hair‐cell mechanotransducer channels in transmembrane channel‐like protein mutants. J Gen Physiol 144: 55‐69, 2014.
 20.Beurg M, Nam JH, Chen Q, Fettiplace R. Calcium balance and mechanotransduction in rat cochlear hair cells. J Neurophysiol 104: 18‐34, 2010.
 21.Beurg M, Nam JH, Crawford A, Fettiplace R. The actions of calcium on hair bundle mechanics in mammalian cochlear hair cells. Biophys J 94: 2639‐2653, 2008.
 22.Beurg M, Tan X, Fettiplace R. A prestin motor in chicken auditory hair cells: Active force generation in a nonmammalian species. Neuron 79: 69‐81, 2013.
 23.Beurg M, Xiong W, Zhao B, Muller U, Fettiplace R. Subunit determination of the conductance of hair‐cell mechanotransducer channels. Proc Natl Acad Sci U S A 112: 1589‐1594, 2015.
 24.Beutner D, Voets T, Neher E, Moser T. Calcium dependence of exocytosis and endocytosis at the cochlear inner hair cell afferent synapse. Neuron 29: 681‐690, 2001.
 25.Bohne BA, Carr CD. Morphometric analysis of hair cells in the chinchilla cochlea. J Acoust Soc Am 77: 153‐158, 1985.
 26.Borst JG, Soria van Hoeve J. The calyx of Held synapse: From model synapse to auditory relay. Annu Rev Physiol 74: 199‐224, 2012.
 27.Bosher SK. The nature of the negative endocochlear potentials produced by anoxia and ethacrynic acid in the rat and guinea‐pig. J Physiol 293: 329‐345, 1979.
 28.Bosher SK, Warren RL. Very low calcium content of cochlear endolymph, an extracellular fluid. Nature 273: 377‐378, 1978.
 29.Brandt A, Striessnig J, Moser T. CaV1.3 channels are essential for development and presynaptic activity of cochlear inner hair cells. J Neurosci 23: 10832‐10840, 2003.
 30.Brown MC, Nuttall AL. Efferent control of cochlear inner hair cell responses in the guinea‐pig. J Physiol 354: 625‐646, 1984.
 31.Brown MC, Nuttall AL, Masta RI, Lawrence M. Cochlear inner hair cells: Effects of transient asphyxia on intracellular potentials. Hear Res 9: 131‐144, 1983.
 32.Brownell WE, Bader CR, Bertrand D, de Ribaupierre Y. Evoked mechanical responses of isolated cochlear outer hair cells. Science 227: 194‐196, 1985.
 33.Chan DK, Hudspeth AJ. Ca2+ current‐driven nonlinear amplification by the mammalian cochlea in vitro. Nat Neurosci 8: 149‐155, 2005.
 34.Chapman ER. How does synaptotagmin trigger neurotransmitter release? Annu Rev Biochem 77: 615‐641, 2008.
 35.Chapochnikov NM, Takago H, Huang CH, Pangrsic T, Khimich D, Neef J, Auge E, Gottfert F, Hell SW, Wichmann C, Wolf F, Moser T. Uniquantal release through a dynamic fusion pore is a candidate mechanism of hair cell exocytosis. Neuron 83: 1389‐1403, 2014.
 36.Chatzigeorgiou M, Bang S, Hwang SW, Schafer WR. tmc‐1 encodes a sodium‐sensitive channel required for salt chemosensation in C. elegans. Nature 494: 95‐99, 2013.
 37.Cheatham MA, Goodyear RJ, Homma K, Legan PK, Korchagina J, Naskar S, Siegel JH, Dallos P, Zheng J, Richardson GP. Loss of the tectorial membrane protein CEACAM16 enhances spontaneous, stimulus‐frequency, and transiently evoked otoacoustic emissions. J Neurosci 34: 10325‐10338, 2014.
 38.Chen F, Zha D, Fridberger A, Zheng J, Choudhury N, Jacques SL, Wang RK, Shi X, Nuttall AL. A differentially amplified motion in the ear for near‐threshold sound detection. Nat Neurosci 14: 770‐774, 2011.
 39.Chen Q, Mahendrasingam S, Tickle JA, Hackney CM, Furness DN, Fettiplace R. The development, distribution and density of the plasma membrane calcium ATPase 2 calcium pump in rat cochlear hair cells. Eur J Neurosci 36: 2302‐2310, 2012.
 40.Cheung EL, Corey DP. Ca2+ changes the force sensitivity of the hair‐cell transduction channel. Biophys J 90: 124‐139, 2006.
 41.Clark GM. The multichannel cochlear implant for severe‐to‐profound hearing loss. Nat Med 19: 1236‐1239, 2013.
 42.Clark GM. The multi‐channel cochlear implant: Multi‐disciplinary development of electrical stimulation of the cochlea and the resulting clinical benefit. Hear Res 322: 4‐13, 2015.
 43.Cohen‐Salmon M, Ott T, Michel V, Hardelin JP, Perfettini I, Eybalin M, Wu T, Marcus DC, Wangemann P, Willecke K, Petit C. Targeted ablation of connexin26 in the inner ear epithelial gap junction network causes hearing impairment and cell death. Curr Biol 12: 1106‐1111, 2002.
 44.Cooper NP. An improved heterodyne laser interferometer for use in studies of cochlear mechanics. J Neurosci Methods 88: 93‐102, 1999.
 45.Cooper NP, Rhode WS. Basilar membrane mechanics in the hook region of cat and guinea‐pig cochleae: Sharp tuning and nonlinearity in the absence of baseline position shifts. Hear Res 63: 163‐190, 1992.
 46.Cooper NP, Rhode WS. Nonlinear mechanics at the apex of the guinea‐pig cochlea. Hear Res 82: 225‐243, 1995.
 47.Corey DP, Hudspeth AJ. Kinetics of the receptor current in bullfrog saccular hair cells. J Neurosci 3: 962‐976, 1983.
 48.Corns LF, Johnson SL, Kros CJ, Marcotti W. Calcium entry into stereocilia drives adaptation of the mechanoelectrical transducer current of mammalian cochlear hair cells. Proc Natl Acad Sci U S A 111: 14918‐14923, 2014.
 49.Corns LF, Johnson SL, Kros CJ, Marcotti W. Tmc1 point mutation affects Ca2+ sensitivity and block by dihydrostreptomycin of the mechanoelectrical transducer current of mouse outer hair cells. J Neurosci 36: 336‐349, 2016.
 50.Coste B, Murthy SE, Mathur J, Schmidt M, Mechioukhi Y, Delmas P, Patapoutian A. Piezo1 ion channel pore properties are dictated by C‐terminal region. Nat Commun 6: 7223, 2015.
 51.Crawford AC, Evans MG, Fettiplace R. Activation and adaptation of transducer currents in turtle hair cells. J Physiol 419: 405‐434, 1989.
 52.Crawford AC, Evans MG, Fettiplace R. The actions of calcium on the mechano‐electrical transducer current of turtle hair cells. J Physiol 434: 369‐398, 1991.
 53.Crawford AC, Fettiplace R. The frequency selectivity of auditory nerve fibres and hair cells in the cochlea of the turtle. J Physiol 306: 79‐125, 1980.
 54.Crawford AC, Fettiplace R. An electrical tuning mechanism in turtle cochlear hair cells. J Physiol 312: 377‐412, 1981.
 55.Crawford AC, Fettiplace R. The mechanical properties of ciliary bundles of turtle cochlear hair cells. J Physiol 364: 359‐379, 1985.
 56.Dallos P. Peripheral mechanisms of hearing. In: Handbook of Physiology, The Nervous System, Sensory Processes: American Physiological Society, pp. 595‐637, 1984.
 57.Dallos P. Response characteristics of mammalian cochlear hair cells. J Neurosci 5: 1591‐1608, 1985.
 58.Dallos P, He DZ, Lin X, Sziklai I, Mehta S, Evans BN. Acetylcholine, outer hair cell electromotility, and the cochlear amplifier. J Neurosci 17: 2212‐2226, 1997.
 59.Dallos P, Wu X, Cheatham MA, Gao J, Zheng J, Anderson CT, Jia S, Wang X, Cheng WH, Sengupta S, He DZ, Zuo J. Prestin‐based outer hair cell motility is necessary for mammalian cochlear amplification. Neuron 58: 333‐339, 2008.
 60.Dannhof BJ, Roth B, Bruns V. Length of hair cells as a measure of frequency representation in the mammalian inner ear? Naturwissenschaften 78: 570‐573, 1991.
 61.Davis H. An active process in cochlear mechanics. Hear Res 9: 79‐90, 1983.
 62.Delprat B, Michel V, Goodyear R, Yamasaki Y, Michalski N, El‐Amraoui A, Perfettini I, Legrain P, Richardson G, Hardelin JP, Petit C. Myosin XVa and whirlin, two deafness gene products required for hair bundle growth, are located at the stereocilia tips and interact directly. Hum Mol Genet 14: 401‐410, 2005.
 63.Dick O, Hack I, Altrock WD, Garner CC, Gundelfinger ED, Brandstatter JH. Localization of the presynaptic cytomatrix protein Piccolo at ribbon and conventional synapses in the rat retina: Comparison with Bassoon. J Comp Neurol 439: 224‐234, 2001.
 64.Dixon MJ, Gazzard J, Chaudhry SS, Sampson N, Schulte BA, Steel KP. Mutation of the Na‐K‐Cl co‐transporter gene Slc12a2 results in deafness in mice. Hum Mol Genet 8: 1579‐1584, 1999.
 65.Doll JC, Peng AW, Ricci AJ, Pruitt BL. Faster than the speed of hearing: Nanomechanical force probes enable the electromechanical observation of cochlear hair cells. Nano Lett 12: 6107‐6111, 2012.
 66.Dong W, Cooper NP. An experimental study into the acousto‐mechanical effects of invading the cochlea. J R Soc Interface 3: 561‐571, 2006.
 67.Dong W, Olson ES. Detection of cochlear amplification and its activation. Biophys J 105: 1067‐1078, 2013.
 68.Dumont RA, Lins U, Filoteo AG, Penniston JT, Kachar B, Gillespie PG. Plasma membrane Ca2+‐ATPase isoform 2a is the PMCA of hair bundles. J Neurosci 21: 5066‐5078, 2001.
 69.Eatock RA. Adaptation in hair cells. Annu Rev Neurosci 23: 285‐314, 2000.
 70.Eatock RA, Corey DP, Hudspeth AJ. Adaptation of mechanoelectrical transduction in hair cells of the bullfrog's sacculus. J Neurosci 7: 2821‐2836, 1987.
 71.Ebrahim S, Avenarius MR, Grati M, Krey JF, Windsor AM, Sousa AD, Ballesteros A, Cui R, Millis BA, Salles FT, Baird MA, Davidson MW, Jones SM, Choi D, Dong L, Raval MH, Yengo CM, Barr‐Gillespie PG, Kachar B. Stereocilia‐staircase spacing is influenced by myosin III motors and their cargos espin‐1 and espin‐like. Nat Commun 7: 10833, 2016.
 72.Elgoyhen AB, Katz E, Fuchs PA. The nicotinic receptor of cochlear hair cells: A possible pharmacotherapeutic target? Biochem Pharmacol 78: 712‐719, 2009.
 73.Emadi G, Richter CP, Dallos P. Stiffness of the gerbil basilar membrane: Radial and longitudinal variations. J Neurophysiol 91: 474‐488, 2004.
 74.Evans EF, Klinke R. The effects of intracochlear and systemic furosemide on the properties of single cochlear nerve fibres in the cat. J Physiol 331: 409‐427, 1982.
 75.Everett LA, Morsli H, Wu DK, Green ED. Expression pattern of the mouse ortholog of the Pendred's syndrome gene (Pds) suggests a key role for pendrin in the inner ear. Proc Natl Acad Sci U S A 96: 9727‐9732, 1999.
 76.Farris HE, LeBlanc CL, Goswami J, Ricci AJ. Probing the pore of the auditory hair cell mechanotransducer channel in turtle. J Physiol 558: 769‐792, 2004.
 77.Fay RR. Hearing in Vertebrates: A Psychophysics Databook. Winnetka, IL: Hill‐Fay Associates, 1988.
 78.Fettiplace R. Is TMC1 the hair cell mechanotransducer channel? Biophys J 111: 3‐9, 2016.
 79.Fettiplace R, Fuchs PA. Mechanisms of hair cell tuning. Annu Rev Physiol 61: 809‐834, 1999.
 80.Fettiplace R, Kim KX. The physiology of mechanoelectrical transduction channels in hearing. Physiol Rev 94: 951‐986, 2014.
 81.Fettiplace R, Ricci AJ. Mechanoelectrical transduction in auditory hair cells. In: Vertebrate Hair Cells, edited by Eatock RA, Fay RR and Popper AN. New York: Springer, pp. 154‐203, 2006.
